RGB Amplifier is used for all our company RGB LED controller. It can accept PWM signal. When adding one RGB amplifier, it can connect to more than double of the number led lights. In theory , RGB amplifier can be connected to numerous.

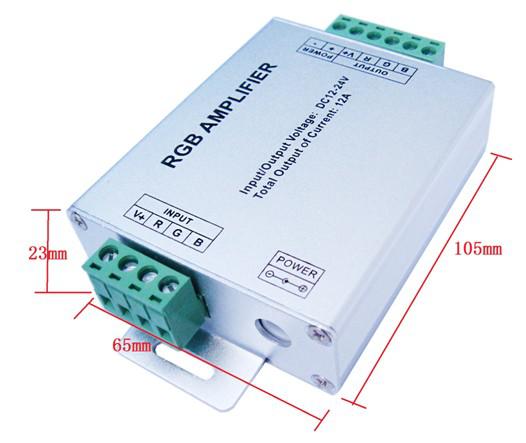

External Dimension （Amplifier）

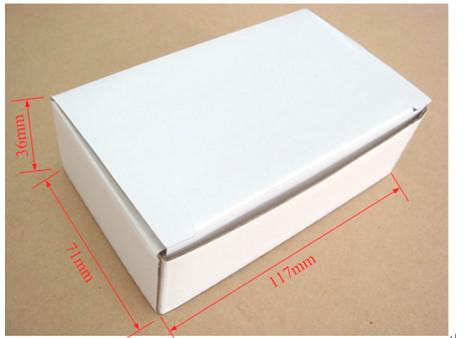

（Packing size）

Technical Parameters

Direction for use

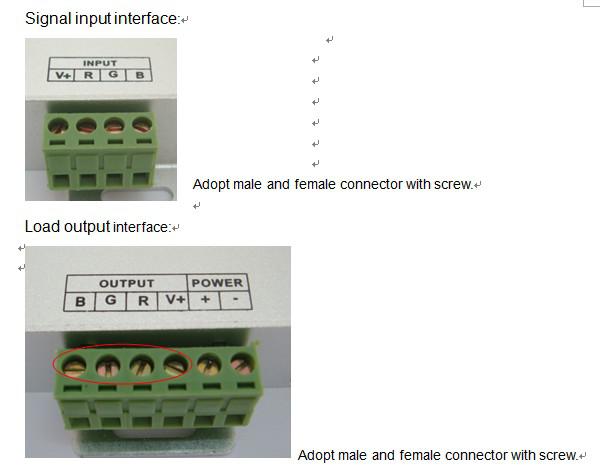

In accordance with Screen Printing on the RGB amplifier panel, connect the input and output signal lines correctly as order. Then connect the power amplifier to the RGB amplifier. Specifically for the use with the LED control, please refer to the following <Typical Applications>.

Typical Applications

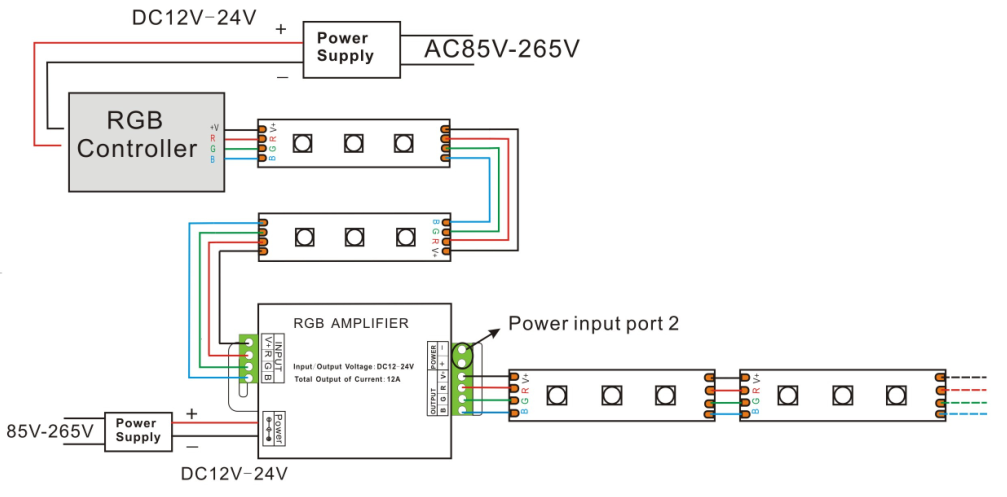

Application Circuit1- Serial connection:

Application Circuit2- Parallel connection:

Notes

1. Supply voltage of this product is DC12V, never connect to others or AC220V.
2. Uses a separate switching power supply for amplifier, the effect is even better.
3. Lead wire should be connected correctly according to grade that connecting diagram offers.
4. This product is not to overload;
5. Warranty of this product is one year, but exclude the artificial situation of damaged or overload working.
